Metal Teks and Series 500

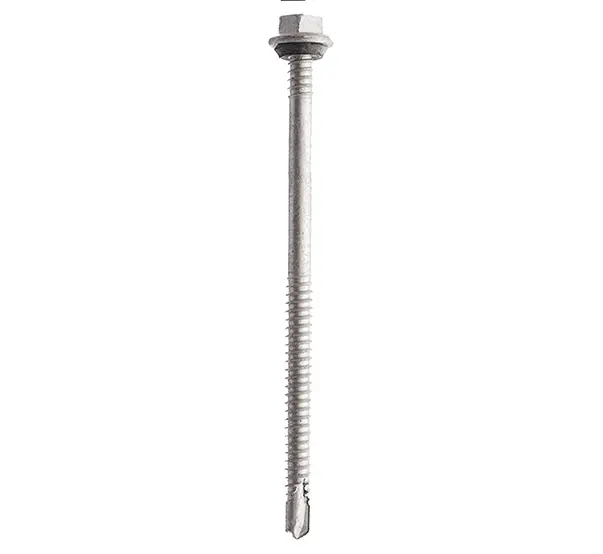

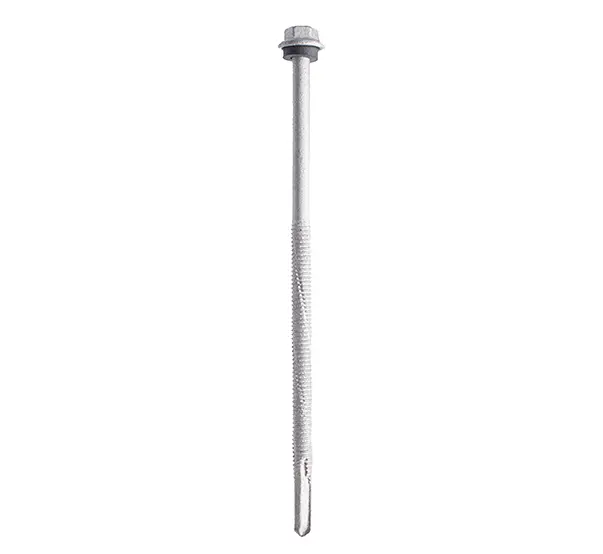

Long 14 gauge Metal Teks® & Series 500 Teks® screws suitable for fixing insulated panel sheeting into metal.
- Fast and Easy application into steel between 1mm and 5mm thick (Metal Teks®) or 3-12mm thick (Series 500 Teks®)
- Climaseal® 4 corrosion protection available
- Higrip® Feature grips to the roof sheeting to create a positive join preventing water entry and over drilling
- Stops the roof sheet moving down the shank when the roof is walked on
Sam Adams | Commercial Manager
Call EmailProduct Variants
| Part Number | Product | Gauge | Thread | Length | Head Type | Seal | Corrosion Finish | Hi Grip | Available Colours | Pack Qty | Carton Qty |
| 6-310-3664-4C4 (While stocks last) | Metal Teks® | 14 | 14 | 110mm | Hex Head | With Seal | Climaseal® 4 | ✔ | Colormatch® | 250 | 1 |
| 6-310-3665-5C4 | Metal Teks® | 14 | 14 | 125mm | Hex Head | With Seal | Climaseal® 4 | ✔ | Colormatch® | 250 | 1 |
| 6-310-3666-6C4 (While stocks last) | Metal Teks® | 14 | 14 | 150mm | Hex Head | With Seal | Climaseal® 4 | ✔ | Colormatch® | 250 | 1 |
| 6-310-3669-9C4 (While stocks last) | Metal Teks® | 14 | 14 | 230mm | Hex Head | With Seal | Climaseal® 4 | ✔ | Colormatch® | 250 | 1 |
| 6-310-3706-6C4 (While stocks last) | Metal Teks® | 14 | 14 | 205mm | Hex Head | With Seal | Climaseal® 4 | ✔ | Colormatch® | 250 | 1 |
| 6-310-3762-2C4 (While stocks last) | Metal Teks® | 14 | 14 | 175mm | Hex Head | With Seal | Climaseal® 4 | ✔ | Colormatch® | 250 | 1 |
| 6-311-3664-4C4 (While stocks last) | Metal Teks® | 14 | 14 | 110mm | Hex Head | No Seal | Climaseal® 4 | ✔ | Unpainted | 250 | 1 |
| 6-311-3665-5C4 | Metal Teks® | 14 | 14 | 125mm | Hex Head | No Seal | Climaseal® 4 | ✔ | Unpainted | 250 | 1 |
| 6-311-3666-6C4 (While stocks last) | Metal Teks® | 14 | 14 | 150mm | Hex Head | No Seal | Climaseal® 4 | ✔ | Unpainted | 250 | 1 |
| 6-311-3669-9C4 (While stocks last) | Metal Teks® | 14 | 14 | 230mm | Hex Head | No Seal | Climaseal® 4 | ✔ | Unpainted | 250 | 1 |
| 6-311-3706-6C4 (While stocks last) | Metal Teks® | 14 | 14 | 205mm | Hex Head | No Seal | Climaseal® 4 | ✔ | Unpainted | 250 | 1 |
| 6-311-3762-2C4 (While stocks last) | Metal Teks® | 14 | 14 | 175mm | Hex Head | No Seal | Climaseal® 4 | ✔ | Unpainted | 250 | 1 |
| 6-350-3028-8C4 (While stocks last) | Metal Teks® - Series 500 | 14 | 20 | 150mm | Hex Head | With Seal | Climaseal® 4 | ✔ | Colormatch® | 250 | 1 |
| 6-350-3029-9C4 (While stocks last) | Metal Teks® - Series 500 | 14 | 20 | 200mm | Hex Head | With Seal | Climaseal® 4 | ✔ | Colormatch® | 250 | 1 |
| 6-351-3028-8C4 (While stocks last) | Metal Teks® - Series 500 | 14 | 20 | 150mm | Hex Head | No Seal | Climaseal® 4 | ✔ | Unpainted | 250 | 1 |
| 6-351-3029-9C4 (While stocks last) | Metal Teks® - Series 500 | 14 | 20 | 200mm | Hex Head | No Seal | Climaseal® 4 | ✔ | Unpainted | 250 | 1 |
| 6-351-3038-8C4 (While stocks last) | Metal Teks® - Series 500 | 14 | 20 | 300mm | Hex Head | No Seal | Climaseal® 4 | ✔ | Unpainted | 250 | 1 |
| 6-351-3049-9C4 (While stocks last) | Metal Teks® - Series 500 | 14 | 20 | 250mm | Hex Head | No Seal | Climaseal® 4 | ✔ | Unpainted | 150 | 1 |
Specification
Buildex 14-14 Hex Head Teks are designed for crest pierce fixing roof, side cladding and insulation roof and side panels to steel purlins. Available either bare or with EDPM Sealing Washer. In cyclonic regions the 14-14 Hex Head Teks can be used with either Roof-Lol Cyclone plates or MultiSeal Washer
Buildex 14-20 Hex Head Series 500 Teks are designed for crest fixing insulated roof panels and insulated wall panels to thick steel (3mm-12mm). Available either bare or with EDPM Sealing Washer. In cyclonic regions the 14-20 Hex Head Series 500 Teks can also be used with MultiSeal Washer.
Enquire About Buildex
Contact our Buildex specialist, Sam Adams, today to discuss how we could help your next project.
