Rear Ventilated Facade Construction

CROSSFIX REVOLUTION

CROSSFIX is a stainless-steel façade substructure engineered for low carbon impact, high safety and efficient installation, delivering strong performance with fewer components and reduced material use.

Explore our Link Hub

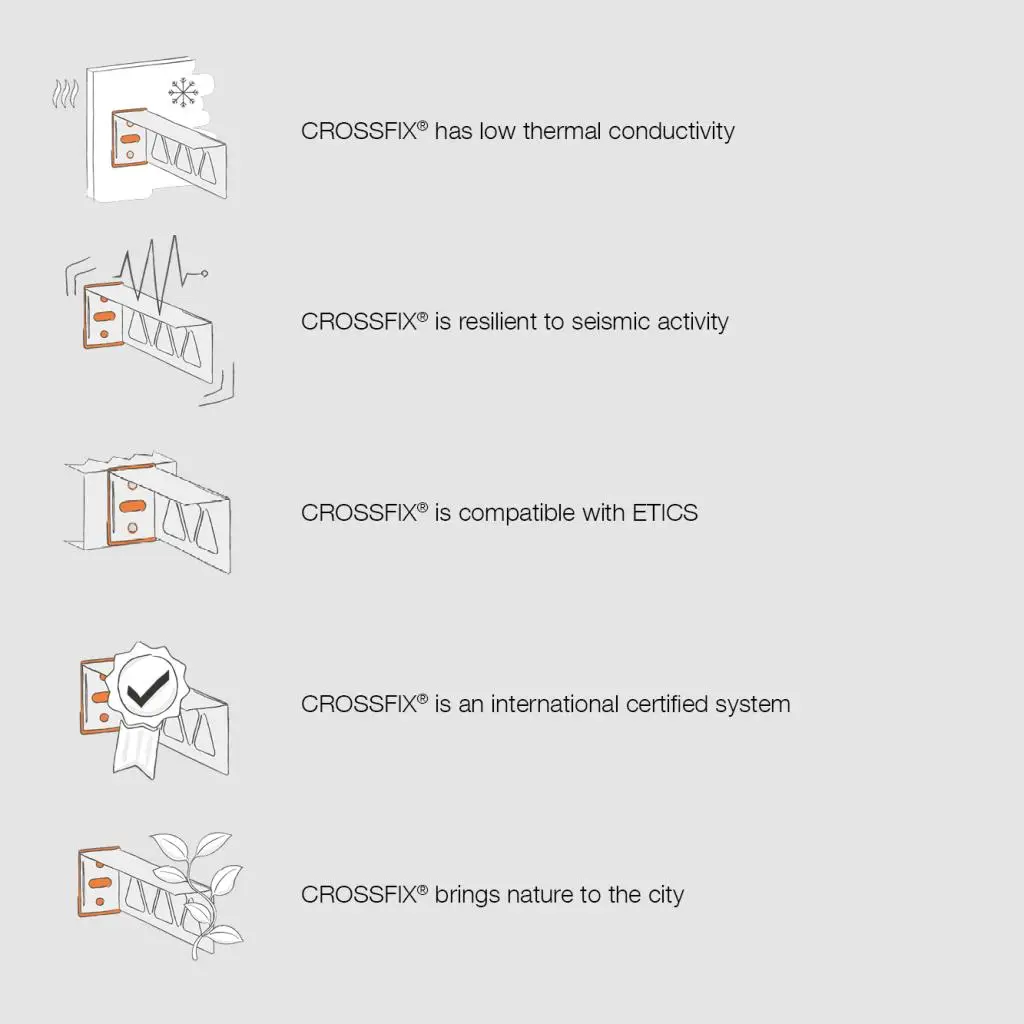

Withstands High Temperatures

Long-term oxidation resistance above 800 °C, with a melting point over 1375 °C (vs 650 °C for aluminium)
Retains 55% mechanical strength at 700 °C, ensuring durability under sustained heat

Low-Carbon by Design

Up to 3.5× lower CO₂ emissions and 10× less primary energy than aluminium during production
Reduces whole-building energy demand, requiring less insulation and retaining existing insulation to minimise waste

Low Thermal Conductivity

13× lower thermal conductivity than aluminium, delivering better U-values and reduced thermal bridging
Thinner wall build-ups with less insulation, increasing usable floor space and improving return on investment

Seismic-Resilient Design

High lateral elasticity and stainless-steel durability ensure performance during seismic movement
Independently seismic tested by CSTB for use in earthquake-prone regions

EJOT

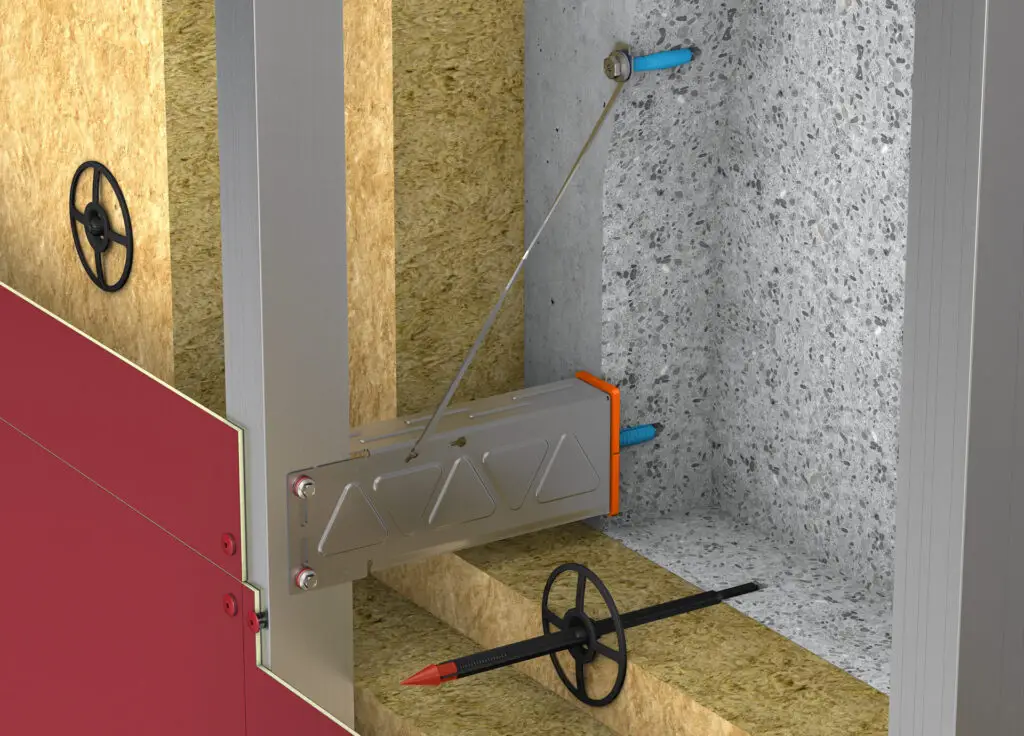

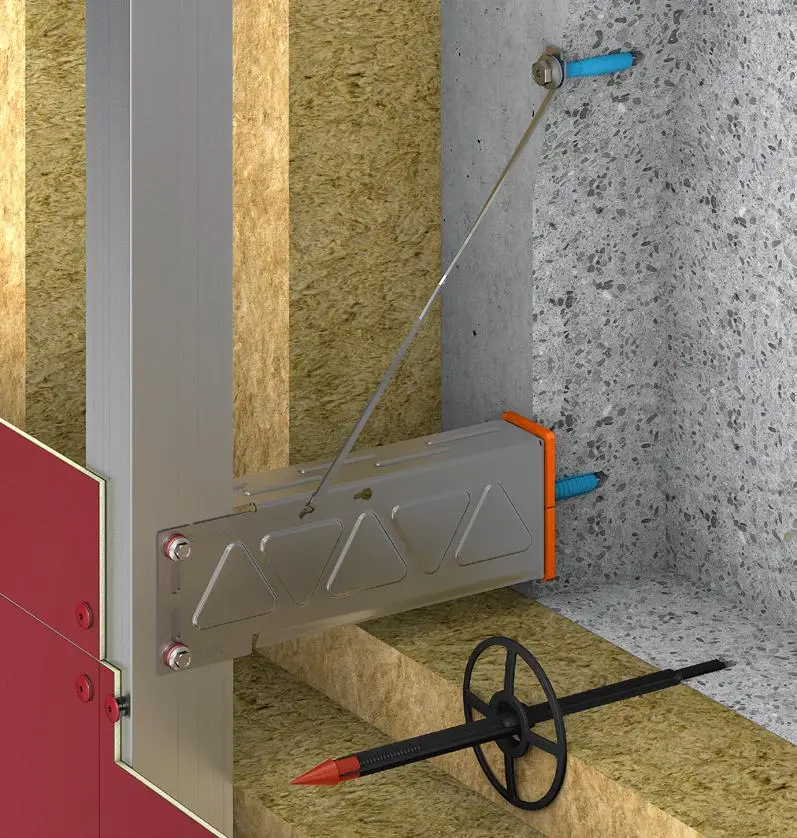

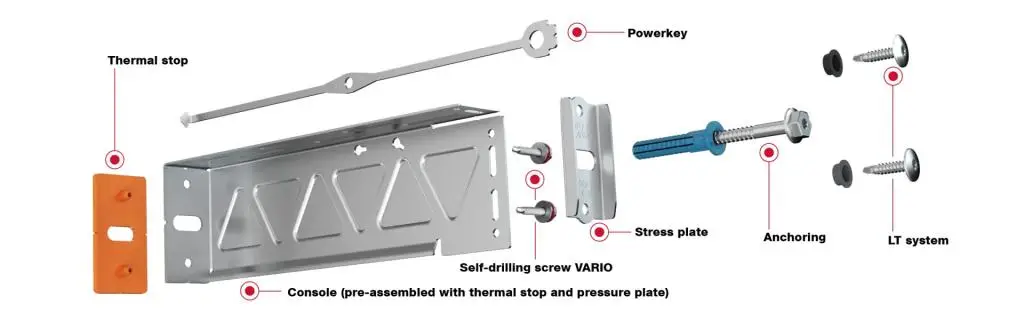

CROSSFIX SYSTEM

stainless steel Facade substructure system with thermal stop and wall anchor

View Fact Sheet

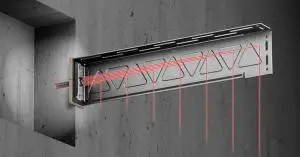

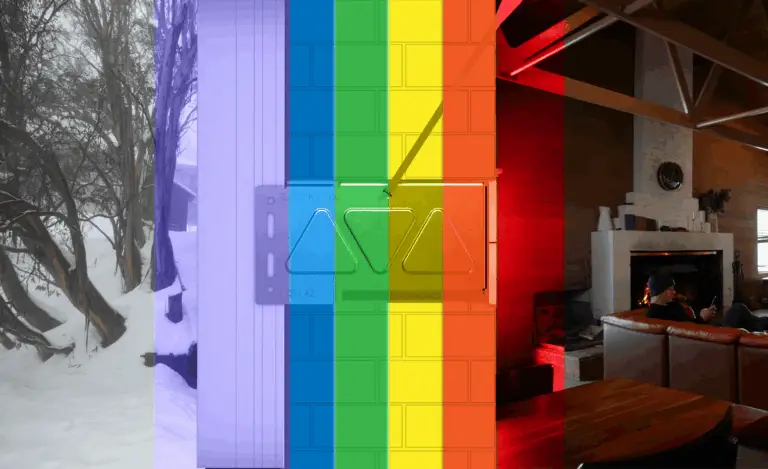

Reduce Thermal Bridging. Improve U-Values.

CROSSFIX uses 100% stainless steel, with thermal conductivity of just 17 W/(m·K) compared to 160 W/(m·K) for aluminium.

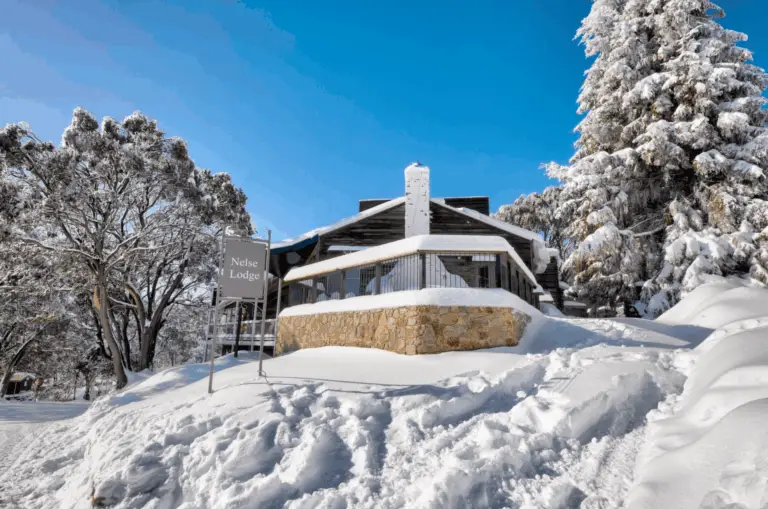

The result? Significantly reduced thermal bridging, improved U-values with the same insulation thickness, and better internal wall temperatures – driving higher overall energy efficiency. See Nelse Lodge Project for real Australian results.
