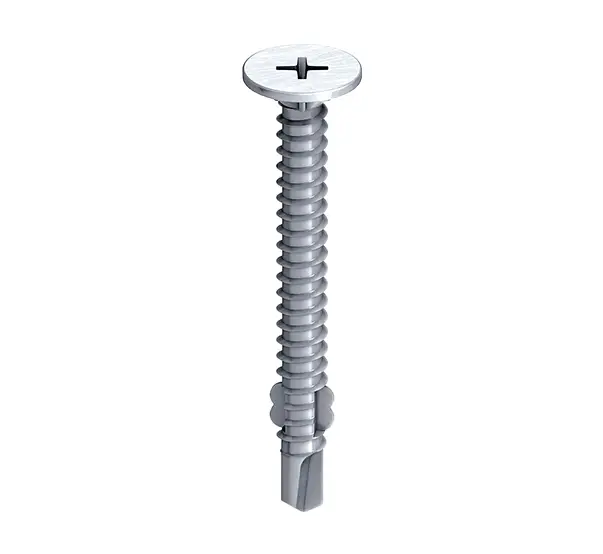

The EJOT SAPHIR self-drilling fastener features a classic drill point designed for use in roofing and cladding.
They can drill, form thread and fasten components in one step. Optional pre-assembled sealing washers are also available.
Head design – many fasteners feature EJOT’s 8mm Hex Hi-Lode head styles with washer flange, for ultimate in pullover resistance and sealing ability.
Optional bonded washer – made of aluminium or stainless steel with vulcanised elastomer for a safe seal and excellent weather and UV resistance.
Drill point and thread form – are designed to provide maximum mechanical performance with ample safety margins for use on building sites.
Finish – specified fasteners have a zinc or organic finish for maximum corrosion resistance in their given application.
Application Information
Timber battens or sheathing board to steel liner trays (from 2 x 0.7 to 2 x 1.2) and light steel frames (from 0.9 mm to 3.0 mm).
Part Codes:
EJOT SAPHIR WDLS Self-Drilling Light Section Fastener (P3):
Ø x L (mm):
4.8 x 30: TBF 4.8 x 30
4.8 x 45: TBF 4.8 x 45
4.8 x 66: TBF 4.8 x 66
