The EJOT COLORFAST range of fasteners incorporates the unique EJOT Coloured Nylon Head designed specifically for use in fixing profiled metal roofing and cladding sheets.
The head provides permanent corrosion resistance and colour matching.
Design – the drill points and thread forms are designed to provide maximum mechanical performance with ease of installation.
Assembly – EJOT COLORFAST components are assembled with a high quality aluminium/EPDM sealing washer to ensure a safe seal every time.
Drill point and thread form – are designed to provide maximum mechanical performance with ample safety margins for use on building sites.
Finish – specified fasteners have a zinc or organic finish for maximum corrosion resistance in their given application and stainless steel variations are waxed to provide lubrication during installation.
Carbon steel with organic corrosion resistant finish. Assembled with integral nylon head and aluminium / EPDM vulcanised sealing washers.

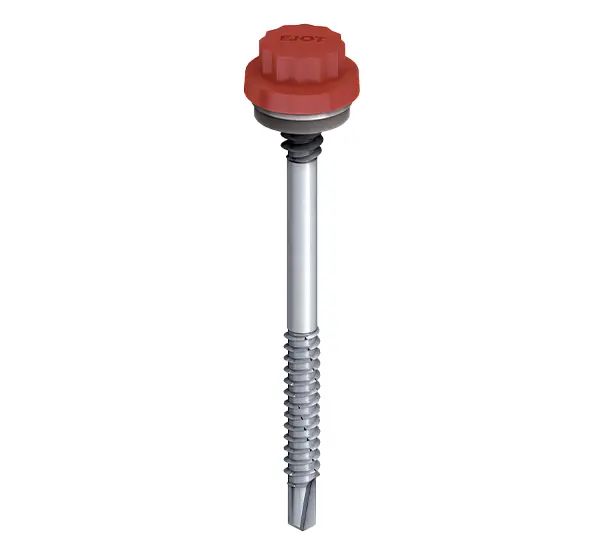

EJOT COLORFAST SAPHIR CF15 JT2-D-6 Self-Drilling Light Medium Section Hight Thread Fastener (11mm Bi-Hex):
Application Information
Steel faced insulation sandwich panels. Steel sections from 1.2 mm to 6.0 mm in thickness.
Part Codes:
Ø x L (mm):
5.5/6.3 x 62: CF15 JT2-D-6 5.5/6.3 x 62
5.5/6.3 x 82: CF15 JT2-D-6 5.5/6.3 x 82
5.5/6.3 x 102: CF15 JT2-D-6 5.5/6.3 x 102
5.5/6.3 x 122: CF15 JT2-D-6 5.5/6.3 x 122
5.5/6.3 x 135: CF15 JT2-D-6 5.5/6.3 x 135
5.5/6.3 x 152: CF15 JT2-D-6 5.5/6.3 x 152
5.5/6.3 x 172: CF15 JT2-D-6 5.5/6.3 x 172
5.5/6.3 x 192: CF15 JT2-D-6 5.5/6.3 x 192
5.5/6.3 x 232: CF15 JT2-D-6 5.5/6.3 x 232
5.5/6.3 x 262: CF15 JT2-D-6 5.5/6.3 x 262
