DH2 Insulation Anchor

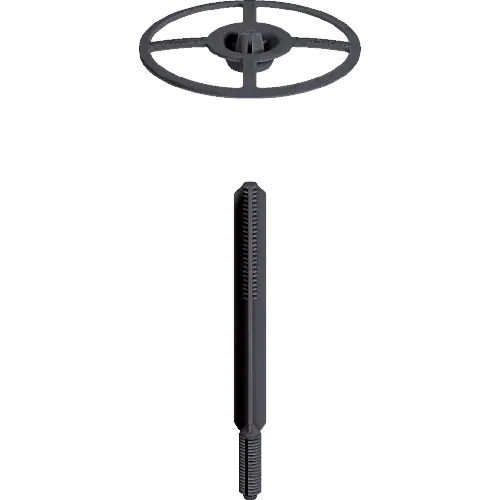

The DH2 insulation anchor is a two-part, high-grade plastic washer/shaft combination. The perimeter fix anchor is set by hammer and specified for fixing insulation to concrete, brick, and block.
Perimeter Fixing for Insulation refers to the perimeter of the insulation sheet. For perimeter fixing use the recommended combination of an EJOT plastic washer with the suitable anchor/fastener shown in the downloadable guide
Get in touch today
EnquireFixing Specification
| Insulation Thickness | Shaft Length |
| 50mm | 60mm |
| 60mm | 60mm |
| 75mm | 80mm |
| 90mm | 100mm |
| 100mm | 100mm |
| 105mm | 120mm |
| 110mm | 120mm |
| 120mm | 120mm |
| 125mm | 140mm |
| 130mm | 140mm |
| 140mm | 140mm |
| 150mm | 160mm |
| 160mm | 160mm |
| 170mm | 180mm |
| 180mm | 180mm |
| 190mm | 200mm |
| 200mm | 200mm |
| 220mm | 220mm |
| 225mm | 240mm |
| 300mm | 300mm |

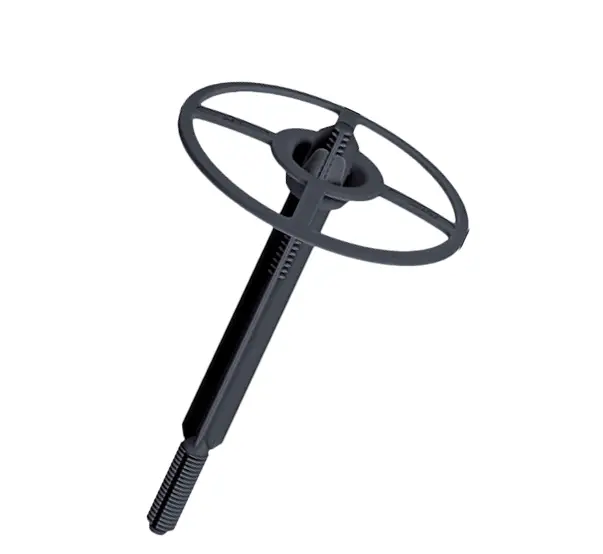

DH2 Two-part insulation anchor is a high-grade plastic washer/shaft combination
Product Specification:
- Anchor: DH 8mm x Shaft Length
- Washer: DH 90mm Disc
- Embedment: 30mm with 8mm pilot hole
