Fasteners for ROCKWOOL® Rainscreen Insulation
Our range of EJOT fasteners has been specifically developed to meet the demands of modern building envelopes, including ventilated cladding systems and sealed curtain walling applications. Designed to work seamlessly with ROCKWOOL® these fasteners ensure secure, durable, and efficient installation every time. Tested and approved for mechanical performance and compatibility, the EJOT Rainscreen fastener range is the trusted choice for fixing into stone wool insulation across a wide variety of façade systems.
How to Install Insulation Fasteners

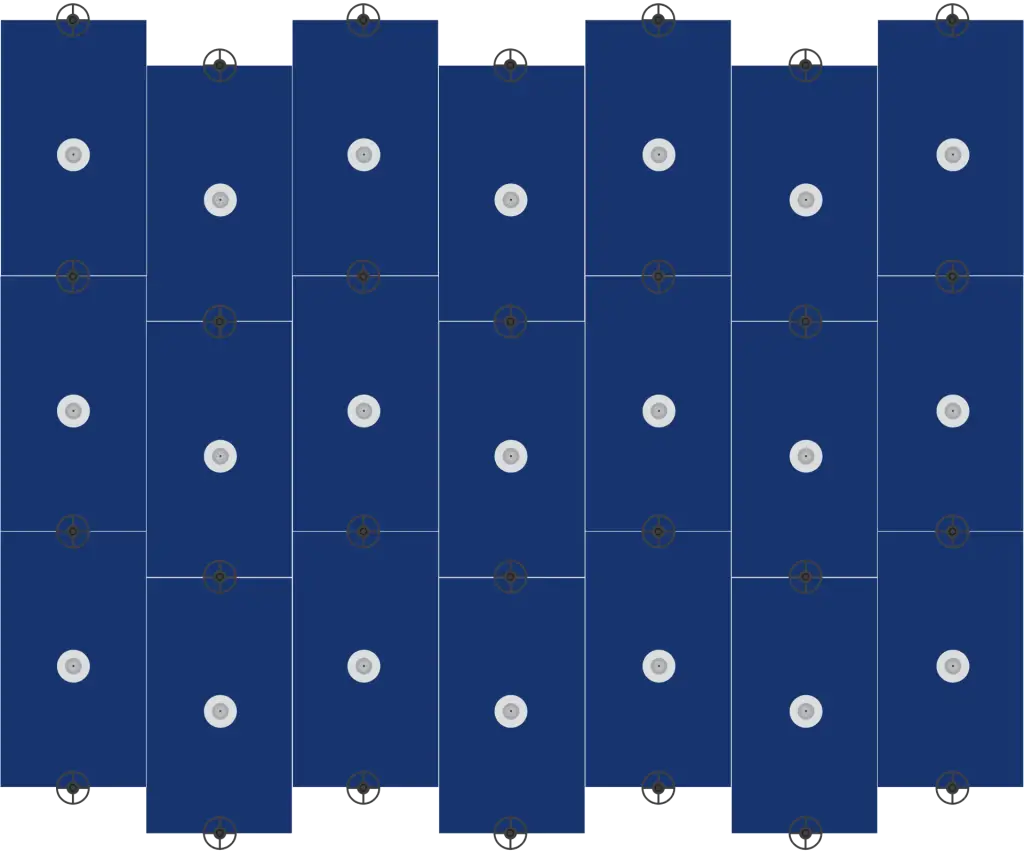

Insulation should be fitted using a combination of Centre fix and Perimeter fix fasteners to create a secure fix
Perimeter Fixing Refers to the perimeter of the insulation. For perimeter fixing use the recommended combination of an EJOT plastic washer with the suitable anchor/fastener
Centre Fixing Refers to the centre of each insulation block. For centre fixing use the recommended combination of EJOT stainless steel fixings
Discover EJOT Insulation fasteners built to secure building insulation sheeting. For centre & perimeter fixing options, click through below or download the installation guide

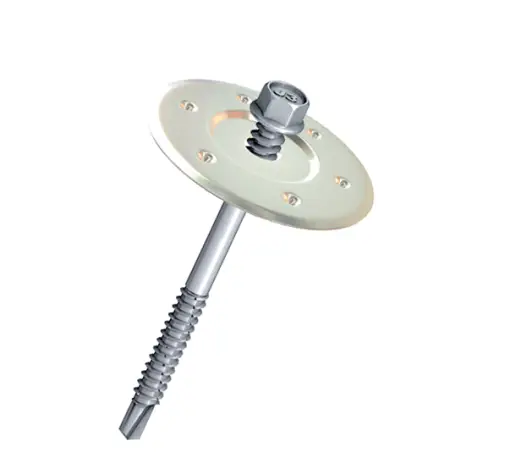

JT3-D6H Fastener with DMT Washer
The Stainless Steel Fastener/washer combination is an 8mm hex head application for centre fix applications.
Centre Fixing Refers to the centre of each insulation sheet. For centre fixing, use the recommended combination of EJOT stainless steel fixings shown in the downloadable guide.
Get in touch today
Enquire

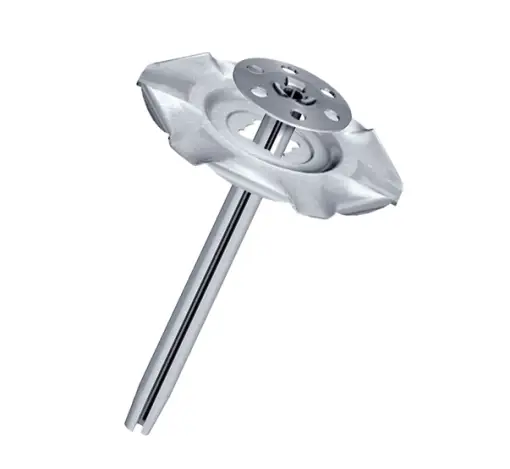

DMH Anchor with DMT Washer
The DMH Anchor with the DMT Washer is a stainless steel centre fixing option for Insulation. The Hammer set solution is specified for concrete, brick and block fixes.
Centre Fixing Refers to the centre of each insulation sheet. For centre fixing, use the recommended combination of EJOT stainless steel fixings shown in the downloadable guide
Get in touch today
Enquire

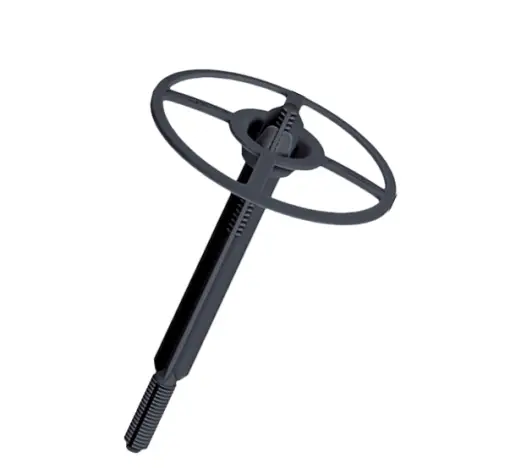

DH2 Insulation Anchor
The DH2 insulation anchor is a two-part, high-grade plastic washer/shaft combination. The perimeter fix anchor is set by hammer and specified for fixing insulation to concrete, brick, and block.
Perimeter Fixing for Insulation refers to the perimeter of the insulation sheet. For perimeter fixing use the recommended combination of an EJOT plastic washer with the suitable anchor/fastener shown in the downloadable guide
Get in touch today
Enquire

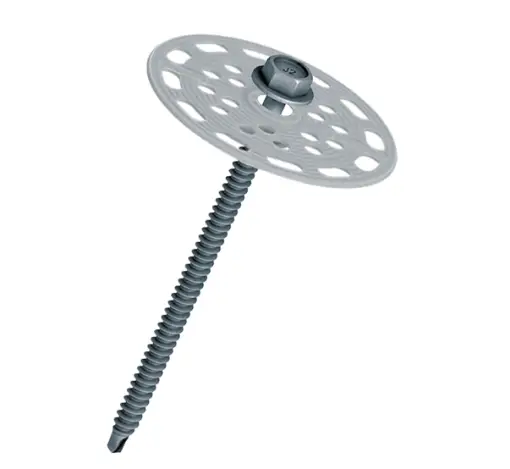

SW8R Fastener with SBV Washer
The SW8R Fastener with SBV Washer is a perimeter fix for fixing to Steel studs from 1.2mm – 1.5mm via Sheathing Board
Please check with Polyplas Technical to confirm sheathing board suitability and fastener performance/compatibility. Note that all fixing lengths listed below are based on the assumption of a 12.0 mm sheathing board. If a different sheathing board thickness is used, please contact Polyplas Technical for further guidance.
Note: See the Fixing specification tab for Timber fixing information
Perimeter Fixing for Insulation refers to the perimeter of the insulation sheet. For perimeter fixing use the recommended combination of an EJOT plastic washer with the suitable anchor/fastener shown in the downloadable guide
Get in touch today
Enquire

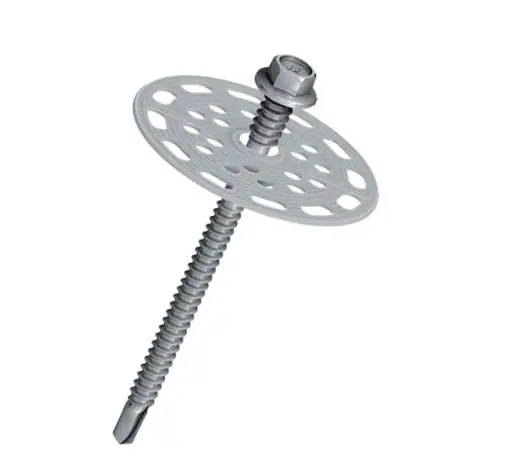

JT2-D6 Fastener with SBV Washer
The JT2-D6 fastener with SBV washer is a steel / high-grade plastic washer combination. An 8mm Hex head sets the perimeter fix, making it suitable for fixing to Steel Studs 1.2mm—6.0mm via Sheathing Board.
Perimeter Fixing for Insulation refers to the perimeter of the insulation sheet. For perimeter fixing use the recommended combination of an EJOT plastic washer with the suitable anchor/fastener shown in the downloadable guide.
